Side
Mount Adapter Installation Instructions
Prepare the Side Mount Adapter by wiping both of the
1”sides of the Side Mount Adapter and the side of the
Holster Rest where the Adapter will attach with

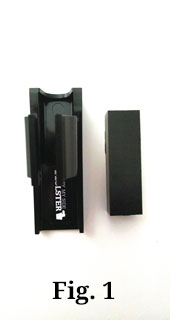

isopropyl alcohol and let dry ( Fig 1). Take (2) of the
supplied adhesive strips and remove the paper cover with
Red printing and align the strips with the top of the

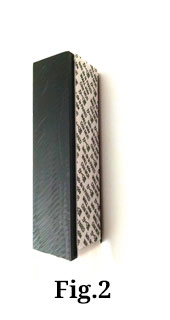

Side Mount Adapter, attach one strip on each side (Fig
2). Remove the paper cover with Black printing on one of
the adhesive strips. Take the Side Mount Adapter and
position the side with the adhesive strip exposed with
the side of the holster rest and align the top of the
Holster Rest and top of the Side Mount adapter by
placing the Holster Rest with the arms up on a table or
flat surface

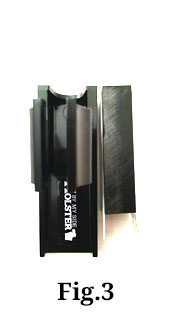

(Fig 3). Apply firm pressure to attach

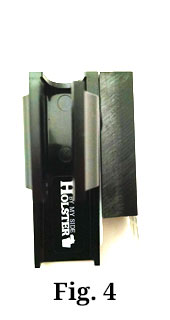

both pieces together ( Fig 4). Your Holster Rest is now

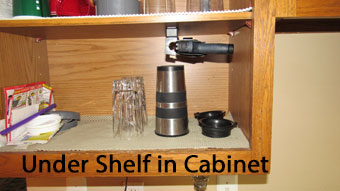

ready to mount on furniture, wall, desks or any solid
surface. For additional mounting instructions, please
refer to detailed instructions for mounting included
with the Holster Rest.

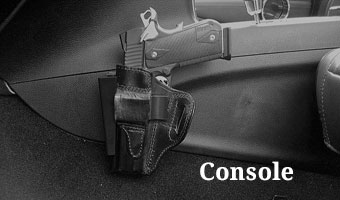

Mounting Holster
Rest to the interior of Vehicle.
The Holster Rest can be
mounted in a vehicle with or without the Side Mount
Adapter. Determine the location where you would like to
mount the Holster Rest. The surface needs to be flat
without contours or shapes. When using the Side Mount
Adapter follow the instructions for the Side Mount
Adapter.
The temperature of the mounting surface in
the vehicle must be between 60°F and 80°F. That will
require warming vehicle in cold climates. The bonding
surface should be clean and dry. The mounting surface
area should be cleaned with a suitable cleaner and a
lint-free cloth to remove polish and/or wax, dirt etc...
Allow surface to dry. Wipe mounting area with another
untreated, lint-free cloth and isopropyl alcohol. Allow
to dry. Open the adhesion promoter packet and wipe
mounting area. The liquid contents of the packet should
be completely used as soon as possible after opening.
Apply promoter only to areas that will be fully covered
with tape. The primer must be dry before applying
Holster Rest. For best results, attach Holster Rest to
the prepared area immediately after primer has dried or
no more than one hour after primer application. Be sure
the primed surface remains free from contaminants prior
to tape application.
Allow 1 hour before use.
Please
read
If you are installing your Holster Rest in a
vehicle without the Side Mount Adapter, the use of the
Adhesion Promoter is still required. The Adhesion
Promoter is necessary to provide proper adhesion to the
plastic components inside your vehicle. The Adhesion
Promoter is included in the Side Mount Adapter Kit and
is also available for purchase separately.
Click here to view the Holster/Holster Rest Size Chart
Note: the chart does not contain all handgun models. If you
are not sure which size Holster Rest or Holster, Please use
Contact Form
